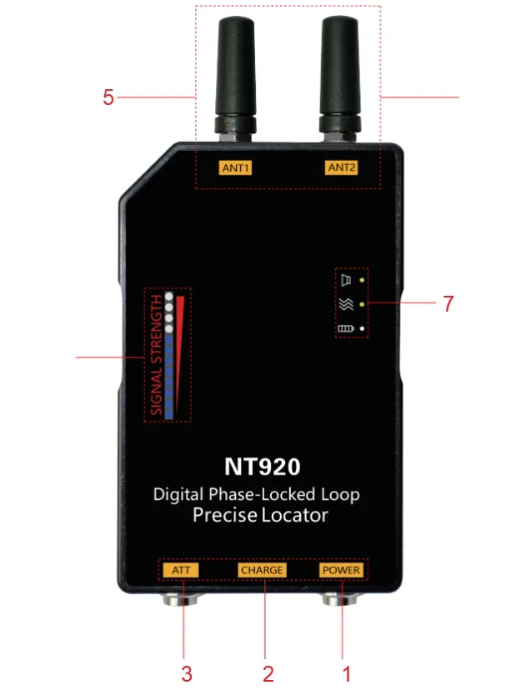

Key identification description

1.  POWER key:  Long press for  three seconds to turn on/off, lightly press to switch between sound/vibration alarmmodes.

2.  Charging port  (CHARGE):  The red indicator  light  is on when charging,  and  the yellow indicator  light   is  on  when  fully charged.  The charging time is about  40 minutes.  After  fully charged, please unplug the charger and do not overcharge for a long time.

3. Automatic Attenuation (ATT) : Lightly press the adaptive at ten- uation value to reduce sensitivity and improve detection ac- curacy.

4.  Signal  strength indicator  light :  indicates the signal  strength level.

5. ANT1: Install auxiliary antenna.

6. ANT2: Install the main antenna (optional directional antenna) .

7.  Mode indicator :  Sound/vibration alarm mode indicator  light, lowbattery indicator light.

Product introduction

Using professional differential wireless detection technology,  the detection sensitivity of the equipment  is automatically corrected by measuring the rate of change in field strength rather than absolute intensity.  Lock  the emission  source  between  40CM and   100CM from the  device  using phase-locked loop comparison technology.  Suitable for non professionals to make accurate judgments without the need for multiple corrections to the detection direction. The device has excellent discrimination ability in com- mercial office spaces and complex wireless environments in cities.  Accu- rately lock the transmission source without being affected by neighboring and outdoor radio signals,  as well as complex indoor radio signal  interfer- ence. The advantage of differential radio detection technology is that it can effectively suppress distant signals regardless of their strength. Detection is achieved by measuring the rate of change in field strength rather than ab- solute intensity.  This technology has better ability to distinguish external signals (significantly rejecting distant  signals),  so it can accurately locate the transmission source at equal distances. Various disguised eavesdrop- ping devices and disguised pinhole surveillance and screening equipment.

It  is  equally effective for detecting GSM uplink signals  (various  tracker transmission frequency bands) .  The main purpose of the equipment  is to independently carpet detect and locate eavesdropping and eavesdropping emission sources.  Automatic calibration of wireless reference values and elimination of invalid signal sources can detect and determine the accurate position of wireless transmission sources.  The phase-locked loop intelli- gent discrimination technology accurately locks the transmission source, truly achieving zero false alarms.

* Accurately  locate the hiding positions of various disguised wireless eavesdropping devices (wireless eavesdropping power 10MW-2W,  locked within 5cmdistance)

* Accurately locate the hiding positions of various disguised wireless sur- veil lance devices  (wireless  surveillance power  10MW-2W,  locked within 5cmdistance)

* Accurately locate the hidden location of the card type eavesdropping device and GPS tracker in the data transmission  (locked within 10cmde- pending on the base station environment)

* Cooperate with professional mobile phone control devices to accurately lock the hiding location of standby phones used in violation of regulations

Equipment parameter

 Detect the following threat devices

 2G/3G/4G/5G Eavesdropping Waiting for secret theft devices

 GPS tracker

 Bluetooth eavesdropping device

 900MHz/1.2GHz/1.5GHz

 Bluetooth and Wi Fi spy phones

 5.8GHzWireless camera

 Wi-Fi/Wi-Max wiretap

 2G/3G/4G/5Gspy phone

 Wi-Fi/Wi-Max Wireless camera
