Products Description

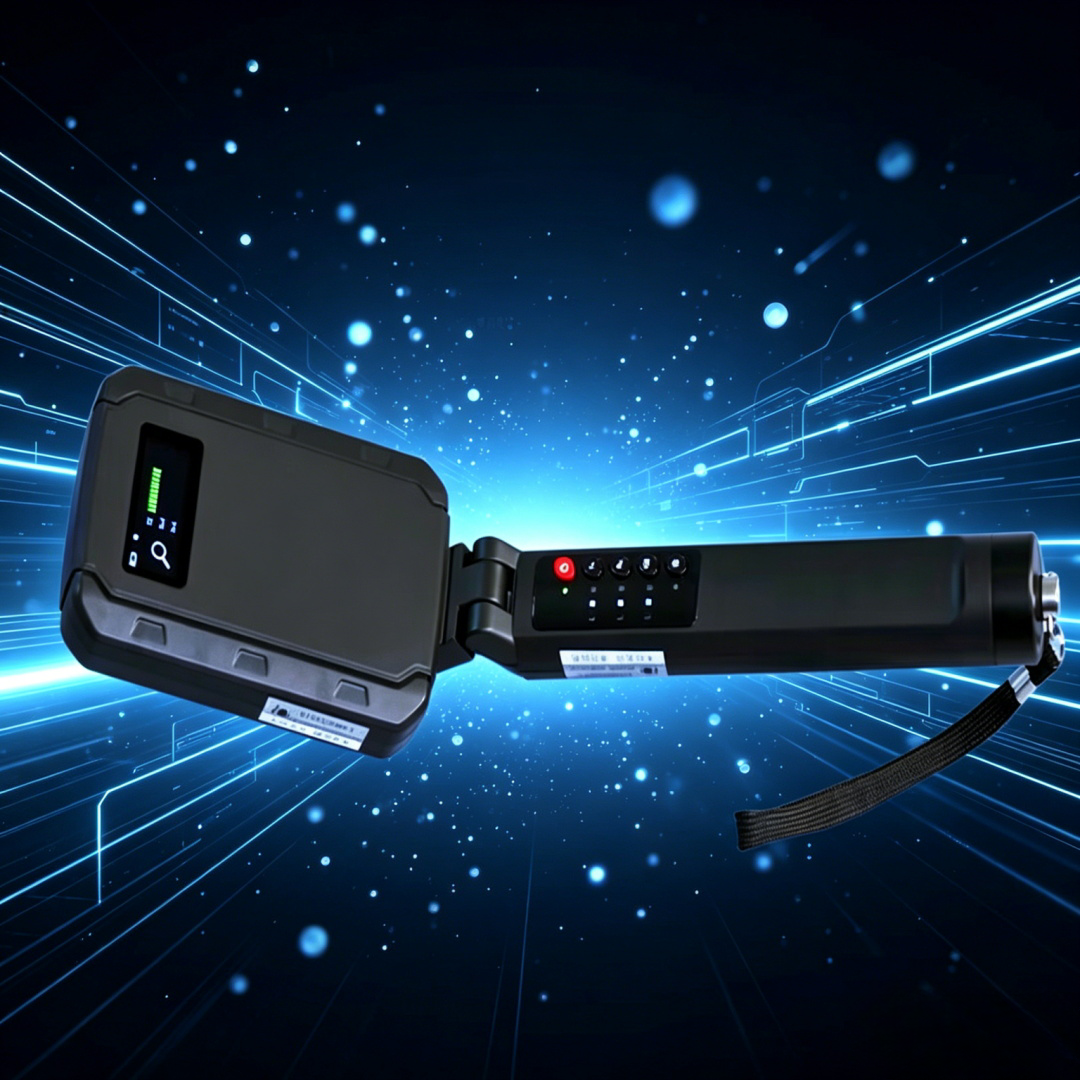

UFX02 is a compact Non-Linear Junction Detector (NLJD) designed to locate concealed electronic devices hidden within walls, floors, ceilings, lighting fixtures, furniture, or containers.It is capable of detecting electronic components regardless of whether the devices are powered on or off, or actively transmitting signals. The UFX02 provides visual, audible, and vibration alerts, enabling operators to efficiently locate target devices and safeguard organizational and personal privacy.
1. Government Security & Confidentiality Departments
2 .Security Checks for Large Events
3.Corporate Confidentiality Inspections
4. Anti-Cheating Inspections in the Education Sector
5. Privacy Protection for Homes and Hotels
| Nonlinear Junction Detector(Small version) | |
| Parameter | Technical Specification |
| Operating Frequency Band | 2.4 GHz |
| Frequency Range | 2.404 GHz – 2.472 GHz |
| 2nd–3rd Harmonic Reception Range | 4.808 GHz – 4.958 GHz; 7.212 GHz – 7.437 GHz |
| Pulse Mode Transmission Power (Max) | 2 W (EIRP) |
| Receiving Sensitivity | ≤ -125 dBm |
| Adjustable Receiving Dynamic Range | 30 dB |
| Standby Time | 5 hours |
| Battery Type | Lithium battery, 5000 mAh |
| Charging Time | 2.5 hours |
| Dimensions | 370 (L) × 96 (W) × 38.5 mm (H) |

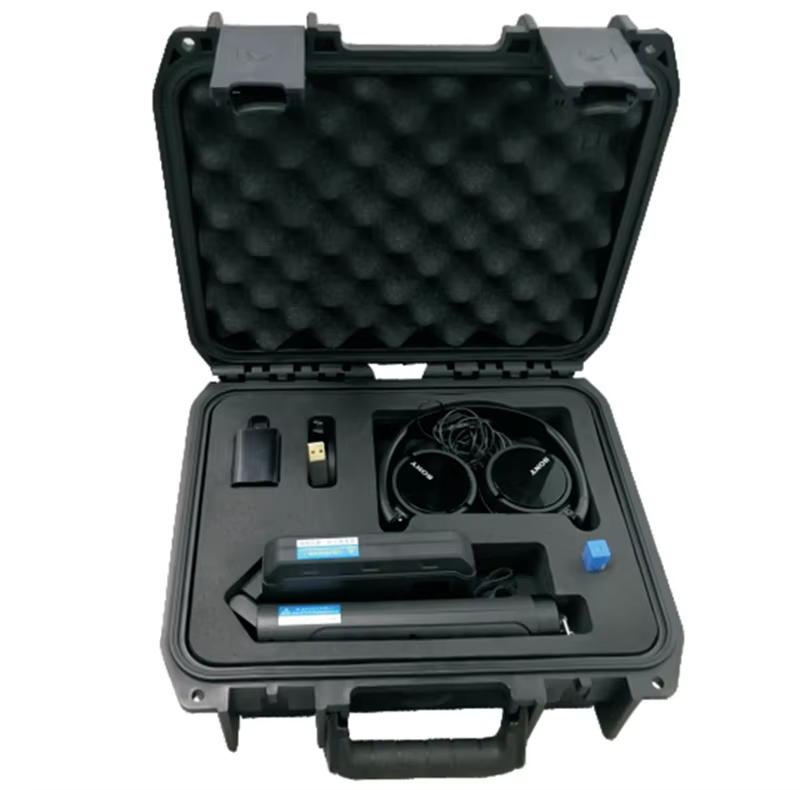

| Carrying Case Dimensions | 355 (L) × 295 (W) × 165 mm (H) |
| Product Weight | 0.5 kg |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | ≤ 95%, non-condensing |
| User Interface | Displays fundamental transmit power and harmonic signal strengthSupports audio alerts, earphone connectionSupports vibration alerts |
| Detection Distance | GPS module: 400–500 mmMobile phone: 150–220 mmSIM card: 80–90 mmWiFi camera: 400–500 mmBugging device: 550–600 mm |
